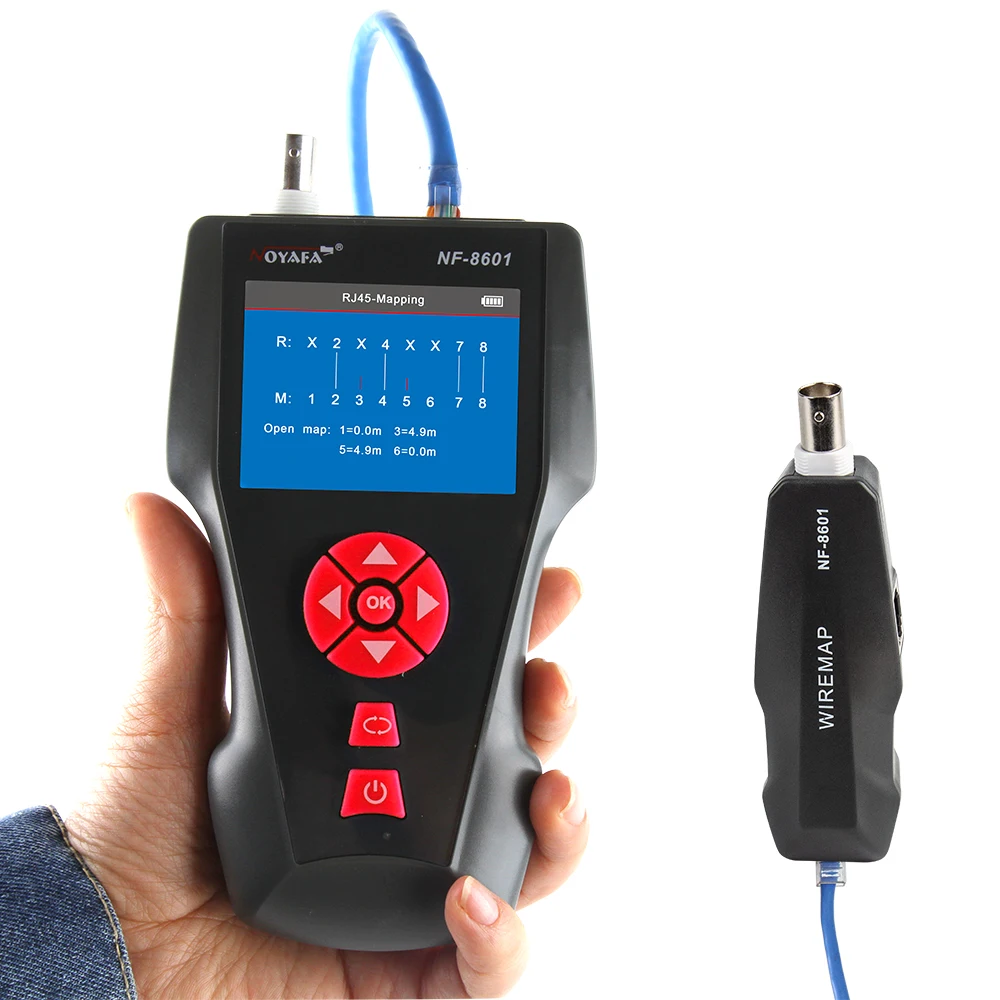

Noyafa New Design NF-8601 POE PING LCD Cable Length Test For RJ11 RJ45 BNC Network Cat 7 Cable Tester Wire Check

100% of buyers enjoyed this product!
View cart→
Product Description
Shipping & Payment
Product Details
1. PoE / PING testing.
2. Trace targeted cable among lots of unknown cables ;
3. Port flash function help trace LAN cable connected to switcher or router visually, no need of receiver.
4. Capable of scanning cable on PoE switch without damaging the device.
5. Locate faults for RJ11/RJ45/BNC Cable;
6. measure cable length accurately
7. Voltage detecting function.
8. Memory and storage function, export or upload the data from PC.
9. Lithium battery and color screen.

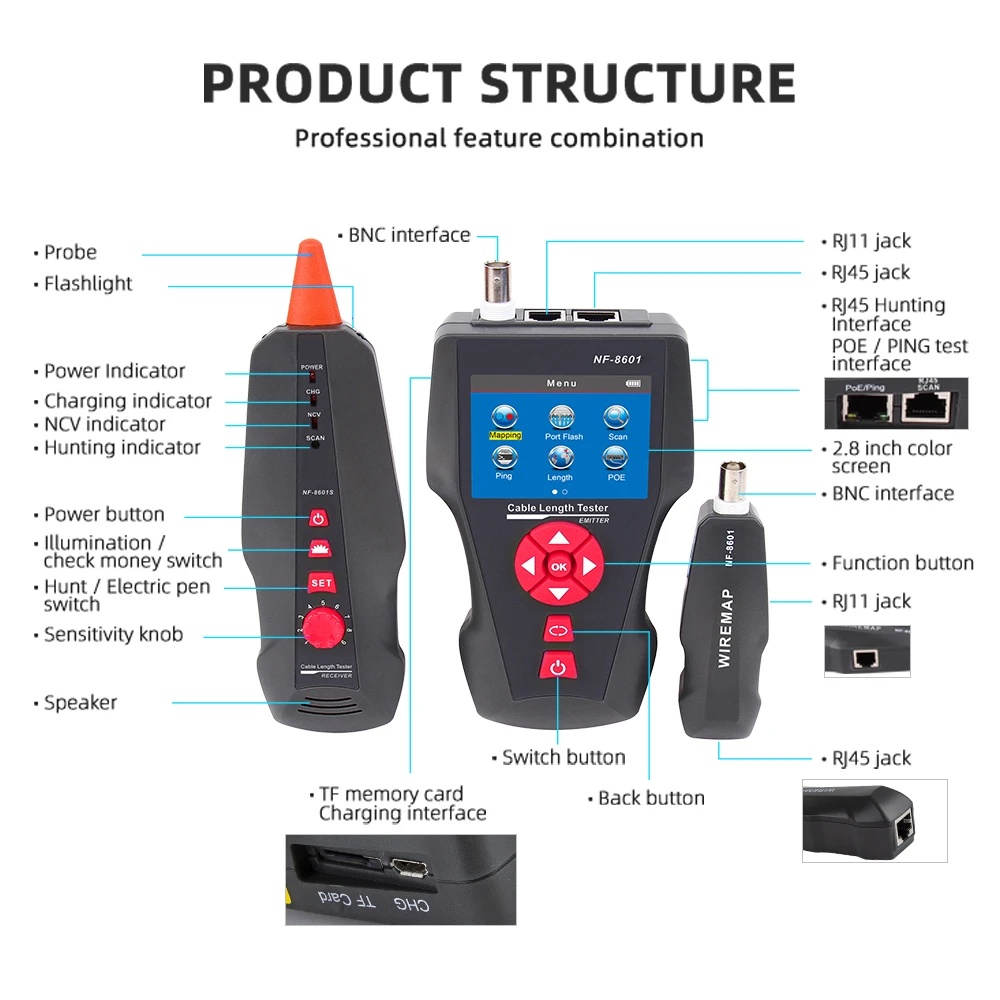

1. Big LCD color screen 320*240
2. Function of storage and memory
3. Currency detection and lighting lamp
4. Automatic delay power on-off
5.Low voltge alarm function
6. Lithium battery for more efficient work
Technical indexes:
NF-8601 Transmitter specifications
Indictor LCD 320×240 mm, with backlight
Cable test types STP/UTP 5E,6E network , telephone , coaxial cable.
Max. distance of wiremap 2000 m
Max. distance of tracing 2000m
Max. distance of cable length 1000 m
Min. distance of calibration 10 m
Accuracy 3% ( after calibration )
Compatible connectors RJ11,RJ45, BNC, PING/POE
Cable map indication LCD (#1-#8)
Battery Type 3.7V lithium battery 1800mAh
Work temperature / humidity 10℃ ~ -60℃ / 0℃~70℃
Dimension(LxWxD) 173x92x34mm
NF-8601 Receiver specifications
Cable hunting RJ11,RJ45, BNC
Types of cable ≥ 2 cores
Battery Type 3.7V lithium battery 1800mAh
Dimension(LxWxD) 183x58x35 mm
NF-8601 Remote unit specifications
Compatible connectors RJ11,RJ45, BNC
Dimension(LxWxD) 106x32x30mm

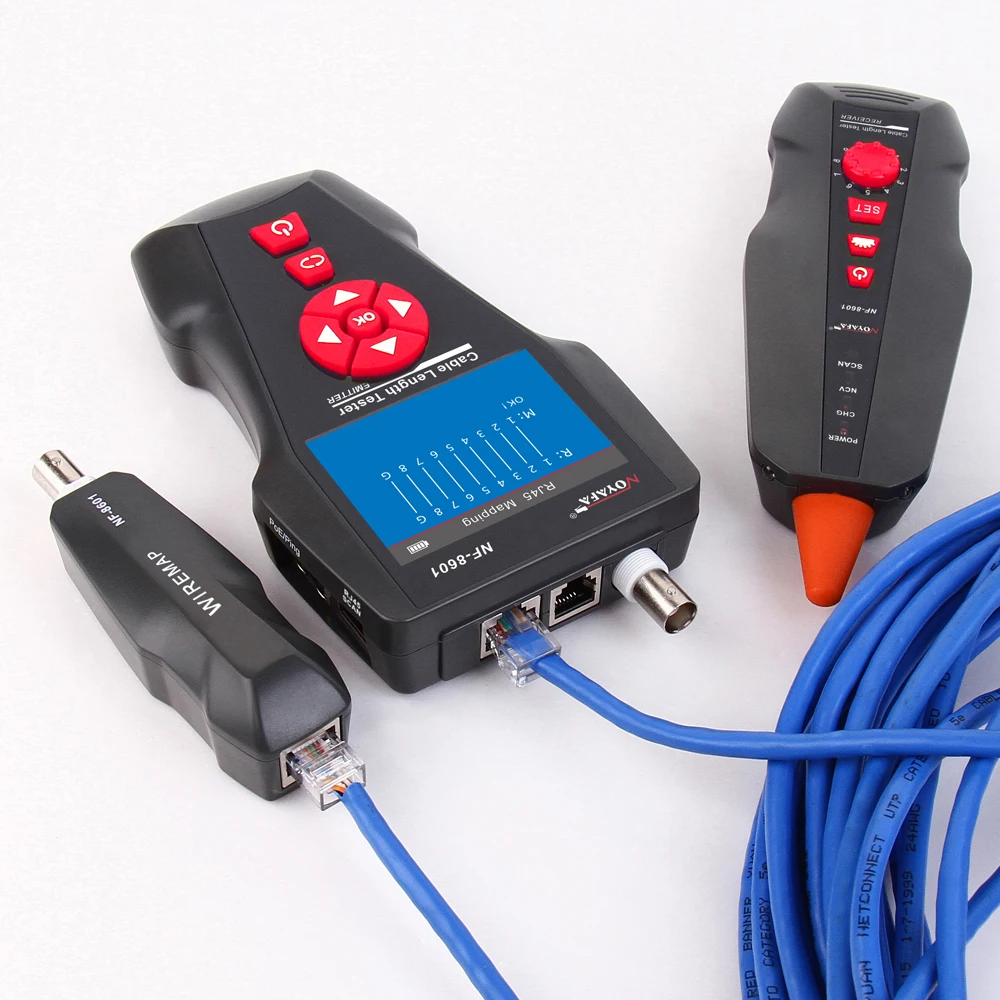

Accessories Included:
Built-in Lithium battery x 2 sets
telephone line adapter x 1 set
network cable adapter x 1 set
Cable clips x 1 set

Application Picture:
