This DV688 Motorcycle camera comes with Full HD 1080p dual lens system.Both the front and rear cameras record high quality video 1080P at 30fps.
This product uses 3rd generation toughened glass which has excellent light transmission for clarity, and exceptional resistance to scratches.
The main DVR unit and cameras are rainproof (IP67 rated), it is absolutely fine to use it on a rainy day.
130° degree wide angle lens, equipped with 2 low light sensor (Sony IMX323 Sensor), enhanced video quality at night.
The camera starts recording automatically when the ignition is switched on, and stops recording automatically when the ignition is switched off after a brief shutdown sequence.

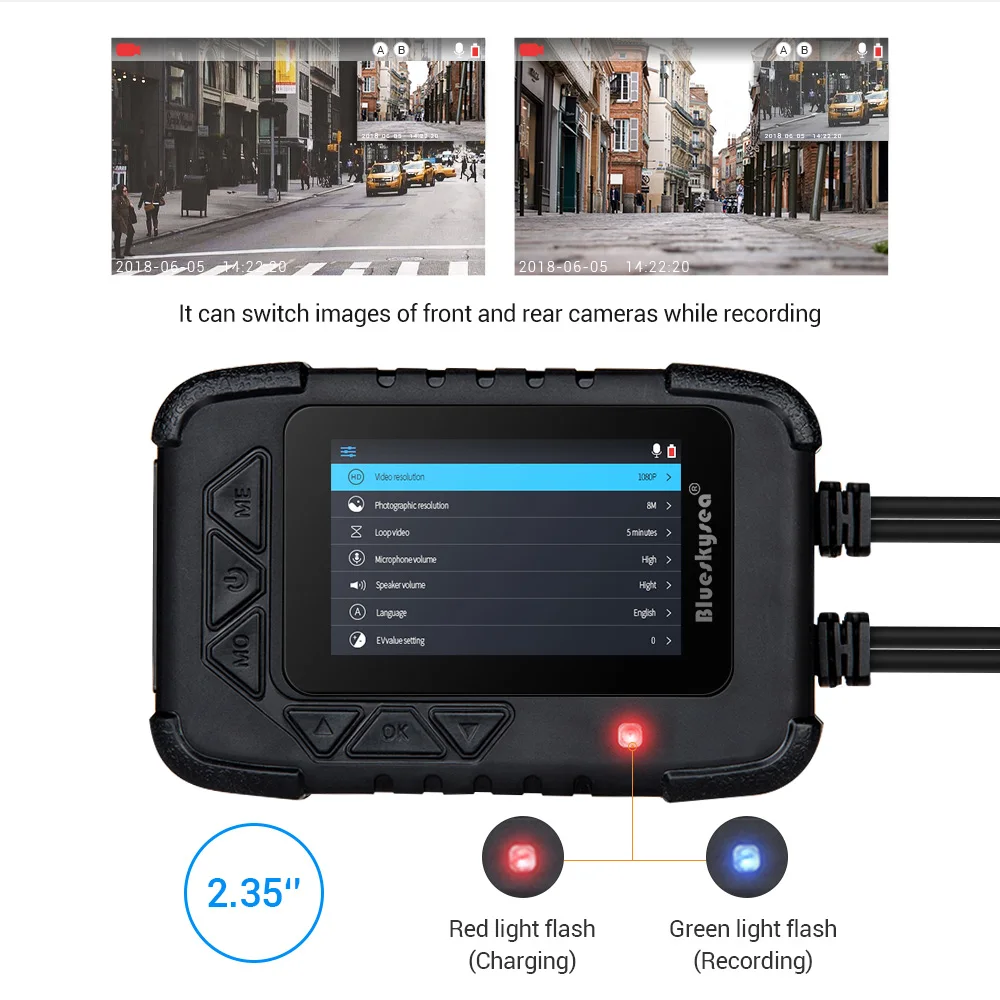

This product has a 960×480 DPI (dot per inch) display which is considerably brighter than comparable competitors displays. It has excellent visibility, day or night.
Specification:
Blueskysea DV688
Processor: Allwinner V3
CMOS Sensor: 2MP Sony IMX323
Lens Optical Parameters: 7G(6G+IR),F1.8,f28mm
Lens Angle: 130 degree

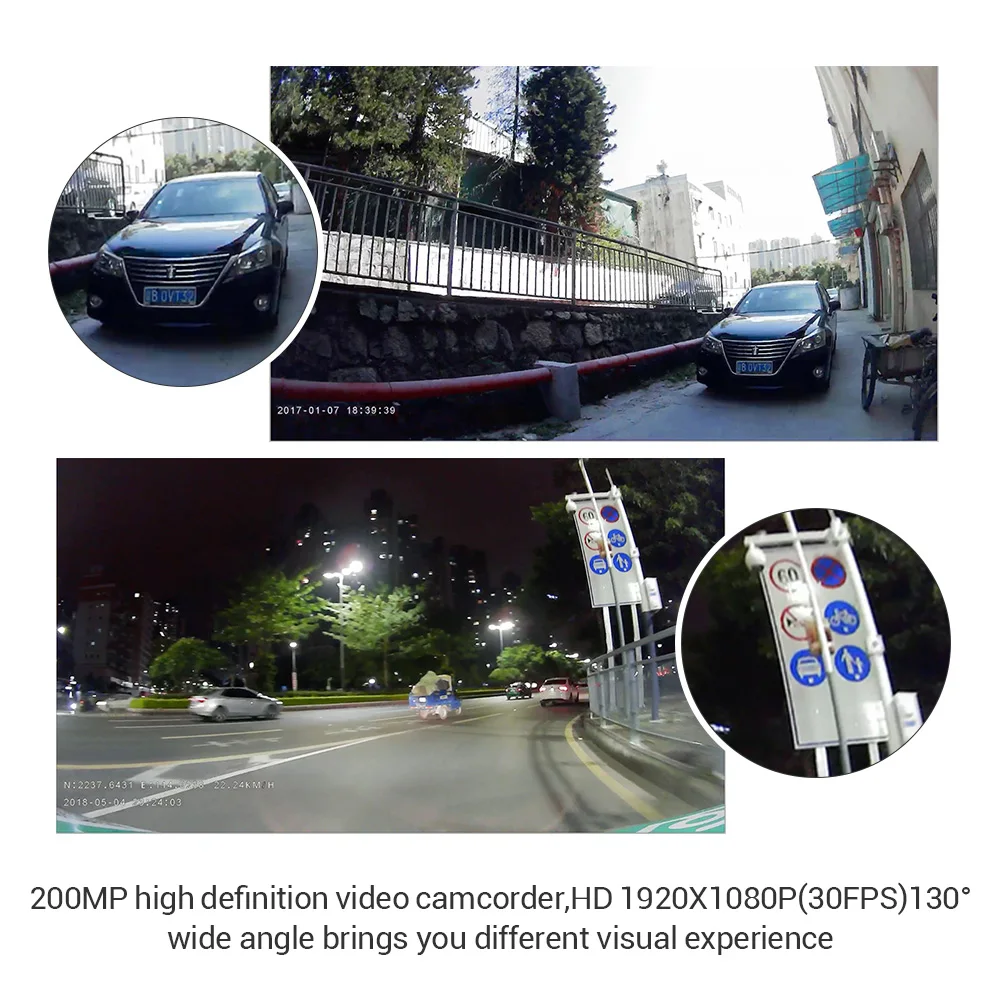

Video resolution: 1920x1080P 30fps;1280x720P 30fps
Video Codec/Format: H.264/Mp4
Photo Resolution: 1/2/5/8MP
Photo Format: JPG
Audio: Mic on wired controller/Speaker on DVR
Memory card capacity: Up to 128GB Max (not includes in package)
Loop Recording: 1/3/5/10 minutes
g-sensor: Off/Low/Middle/High
Emergency lock: Support
GPS Logger: Optional
Language: English/Chinese/Japanese/ Korean/Russian/Spanish/Indonesian / Vietnamese
Rain Waterproof: IP67 Rated
Screen Size: 2.4 inch 960×480 dots
DVR Size: 102x67x25mm/4×2.7x1in
Camera Size: 28x28x33 mm/11x11x13 in (without Mount)
Camera Extension Cable Length: 5 m/16 ft(in total)
Wired Controller Length: 2.8m/9ft
Unit weight: 523g/18.50z
Power Input: 12-24v
Power Adapter Output: 5V, 2A
Removable lithium battery: 3.7V,500mAh
Storage Temperature: -4F~+176F(-20°C~+80°C)
Working Temperature: 14F~+104F(-10°C~+40°)
Installation Diagram
Standard Package:
1x DV688 2CH Camera,
1x Wired Controller
1x Power Adapter
1x USB Charger Cable,
2x 1m connection cable,
1x 3m connection cable,
1x Switch mount
1x Handlebar Bracket kit,
2x Backup mount for camera
1x L Shaped Hex Screwdriver
1x Adhesive mount
1x Adapter
1x Fixed base
1x USB cable
1x User manual
1 x GPS module(Optional)
1 x Class 10 TF Card(Optional)
OPTIONAL ACCESSORIE
DV688 GPS module
With this gps module, you can check vehicle location/speed/route on Map through GPS Video Player.
How to wire power cable?
1. Connect red wire to the 12V port controlled by key ignition (ACC port).
2. Black wire to battery cathode.

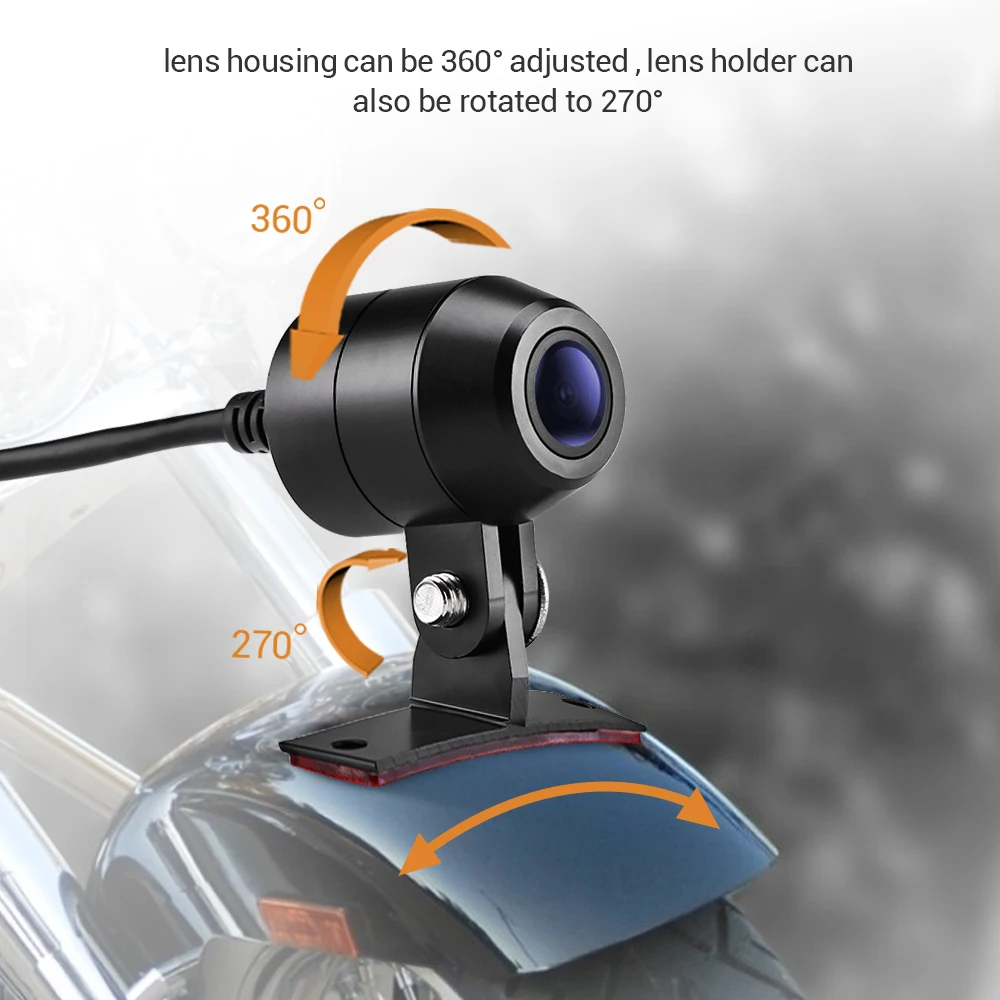

How to adjust camera?
1.Loosen the lens clip with supplied tool.
2.Viewing the screen and rotate the lens body to adjust the horizontal view angle.
GPS Module is not a Where to plug this GPS module? (standrand accessory for this camera!)
1. Find this ‘Y’ shaped connector splitter cable in package!
2. Plug GPS module to one end of its connector, and the wired controller to the other connector.
What is the GPS video player for dv688?
1. Use “LIGO” player if your order before August 2019
2. Use “GX Player” if your order after August 2019
3. You can download the Video Player in our website
