Light Control Motion Sensor Outdoor Wall light 20W / 10W Ip65 Waterproof Exterior Wall Lamps Led Stairwell Porch Lighting
1. Application places : Living room / Bedroom / Aisle / Hotel / Wall / KTV / Bar and other places
2. Power : 20w / 10W
3. Power factor : >0.9
4. Lamp Bead Model : 5730 (20 led)
5. Chip : Epistar
6. Light efficiency : 1600 LM / 800 LM
7. Power parameters :
Input : 12-36V / 85-265V
8. Color rendering index : >0.8
9. Color temperature range : ±500
10.Working temperature : -20 to +50
11.Material : Aluminum
12.Net weight ：0.8kg
13.Product size ：As the option picture
14.Color: Black / Grey
15. Function(1 lamp can only have one function)
Function 1: Radar Motion Sensor 4-6 M (With light control)
Function 2: 3 Light Colors Changeable (Warm white, Cold white, Natural white)
1. New outdoor Wall lamp: In order not to affect the delicate shape of the lamp, our outdoor wall lamp does not have an external Motion sensor. Our sensor device is built as a chip with a white power inside the lamp. The sensing distance is 4-6 meters. For the specific difference between Function 1 and Function 2, please see the specific introduction below.
2. About the option,
Option “Only Warm White” or “Only Cold White” means the lamps are without function(No radar and No light Changeable)
Option “Sensor Warm White” or “Sensor Cold White” means the lamps are with radar motion sensor (Light Control)
Option “3 Colors Changeable” means the lamps can be changed in “warm white””cold white” and “natural white” with your home button.
3. About the light body color,
Design A, C, D, E, F, G, I, J are pure black.
Design B is Grey.
*Use high light transmission acrylic lens
*Increase lamp body service life
*Simple install, easy to match your home design
Function 1. Radar Motion Sensor (With Light control)
4-6 M Distance Motion Sensor
Regarding such radar sensor lights, the radar sensor lights do not have an external motion sensor. Its sensor module has been fabricated into a chip that is embedded in a power supply.
Then, regarding the lighting mode, the sensing range of the light is 4-6 meters.
A. When the ambient light is insufficient, the light will be 100% bright when the person enters the sensing range. When people walk out of this range for about 30 seconds, the light will automatically go out. (Figure 5,6)
B. When the ambient light is sufficient (daylight), the light will automatically go out. (The light will remain off even when the person enters the sensing range.) (Figure 4)
Note: In a dark environment, when people enter the sensing range, after the light is on, if the ambient light is suddenly sufficient (for example, the night turns into the day), it takes about 30 seconds for the light to go out.
Function 2. 3 Light Colour Changeable
Regarding the lighting adjustment, you need to use it with the lamp holder switch. After you connect the wire, turn on the lamp holder for the first time, he will change the color once, turn it off and then turn it on again in 5 Seconds, it will change the second color. analogy (more than 5 seconds need to re-circulate the light colors) (Figure 7,8,9)
1.Q: How long is the warranty period of the lighting?
A: All our lamps have a 2 year warranty, please rest assured to buy.
2.Q:What is CCT?
A: CCT is short for Corelated Color Temperature. Simply speaking, it’s the light color. For example, warm white, natural white, etc.
3000-3500K (warm white)
4000-4500K (natural white)
6000-6500K (pure white)
>7000K (cold white)
3.Q: What is RGB(W)?
A: The basic color Red, Green, Blue, (White), their combination with each other can generate any color in the visible spectrum. It can achieve a color changing effect.
[If you need white color in your lighting, choosing RGBW. RGB can not generate white color.]
4.Q:What is IP44, IP65, IP68?
A:IP(Ingress Protection), classifies as the protection level against intrusion of dust and water. Higher number means higher protection level.
The first digit indicates the protection level against solid?particle ( like dust. )
The second digit indicates the protection level against liquid.
IP44: dust-proof, NOT waterproof

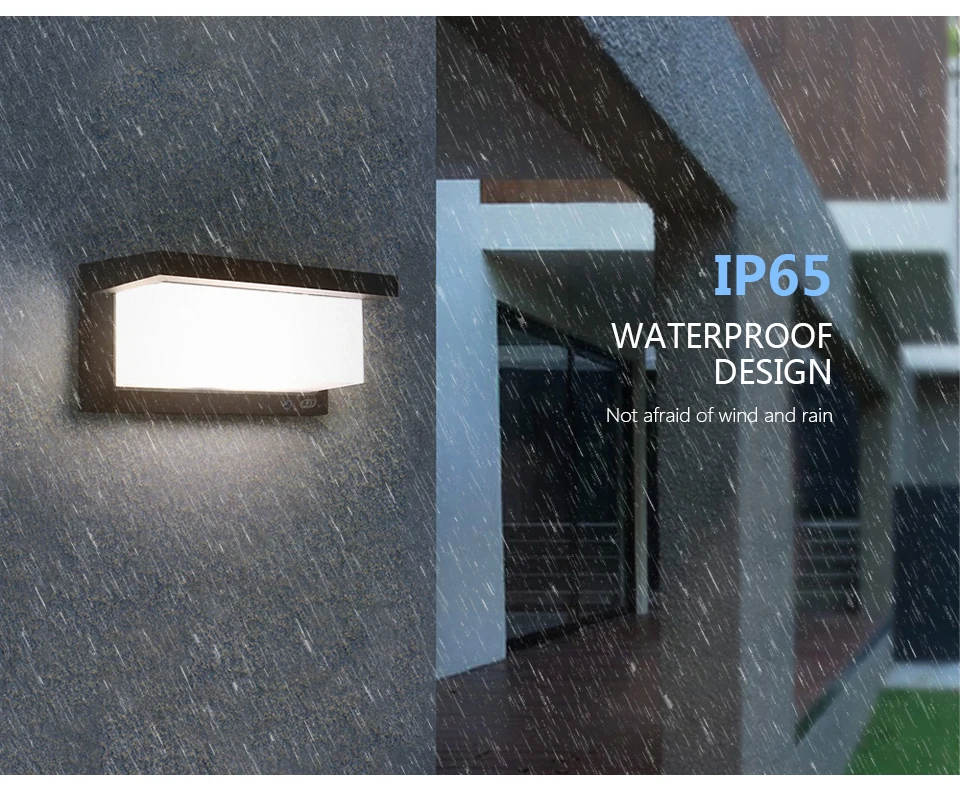

IP65: the light can work in heavy rain condition.
IP68: the light can all immerse in water,
5.Q: What is CRI or RA?
A: CRI(Color Rendering Index), is the ability of light to restore color.
Higher CRI indicates the color under light is more close to the actual color of the object.
6.Q: What is Lumen?
A: Simply speaking, Lumen indicates the brightness of LED light. Higher lumen has higher brightness.
7.Q: What is beam angle?
A: Beam angle is the angle from which the light is emitted. It is NOT the adjustable angle of the light fixture.
8.Q: Can your LED light be dimmable? Changing color?
A: Yes. Detail information please contact our customer service.
